Description
Description

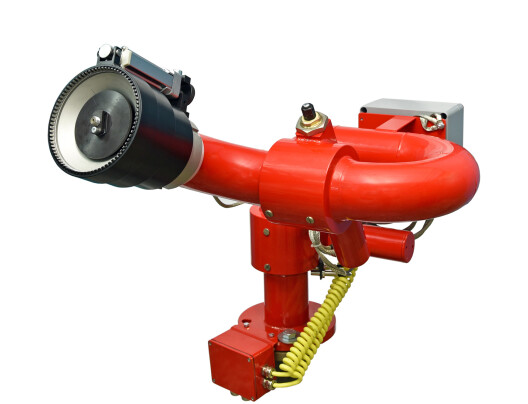

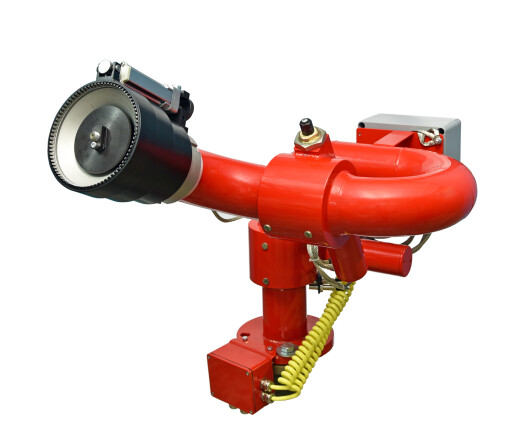

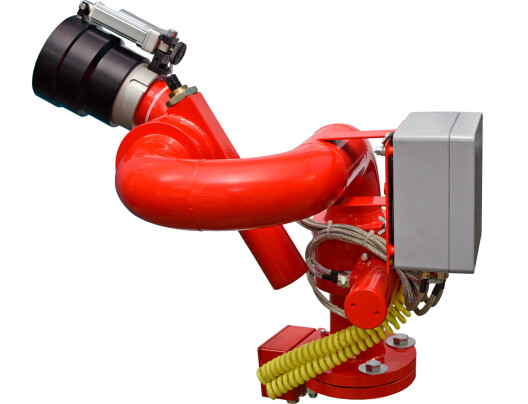

Fire monitor water/foam, universal, fixed, with remote control, with flow rate of 50, 60, 70, 80 l/s, of tube construction.

The fire monitor is applied for formation of extinguishing solution streams with adjustable spray angle from a straight stream to a dispersed at 90°.

The fire monitor is used in fire hazardous zones for fire suppression, cooling of buildings and technological structures, precipitation of poisoned or radioactive gases, fumes and dusts.

Fire monitors are produced in a climatic category in accordance with GOST 15150: UHL 1.1 UHL 1, U 1, OM 1. Fire monitors are produced in accordance with the requirements of Technical Specifications ТU 4854-003-16820082-2008 and TR EAEU 043/2017.



More
LSD-S60(50,70,80)U
Features
Name of parameters
50 60 70 80
Nominal pressure, MPa 0,8
Operating pressure range, MPa 0,4-1,0
Flow rate of water (foam agent solution), l/s 50 60 70 80
Stream range (outermost) at nominal pressure, m, not less than::
- straight water stream 70 75 75 78
- dispersed (at a stream discharge angle of 30°) 43 44 46 50
- straight foam 60 63 65 70
Angle range of a dispersed water stream, degrees 0-90
Working area of monitor rotation, degrees:
- vertical up +90 to -45
- horizontal 345
Weight, kg, not more than 55
Useful information
Certificates All certificates

Products: Water-foam fire monitors, universal, with manual and remote control, stationary, portable, trailer-mounted (including construction versions: low - "n", ball-socket - "b", explosion-proof - "Ex") of LS, LSD types, are manufactured in accordance with the Technical specifications TU 4854-003-16820082-2008 with amendment 7.

The products comply with the requirements of the Technical regulations TR EAEU 043/2017 "On the requirements for fire safety and fire extinguishing equipment".

Certificate validity period: from 06.07.2021 till 06.06.2026.
