Description
Description

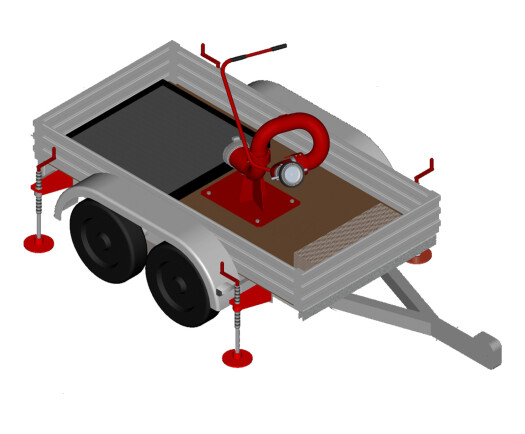

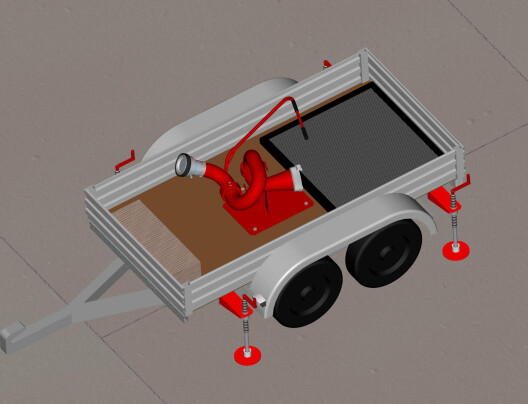

Fire monitor water/foam, universal, trailer-mounted, with manual control, with flow rate of 70,80,90,100,125 l/s.

The fire monitor is applied for formation of extinguishing solution streams with adjustable spray angle from a straight stream to a dispersed at 90°.

The fire monitor is used in fire hazardous zones for fire suppression, cooling of buildings and technological structures, precipitation of poisoned or radioactive gases, fumes and dusts.

More
LS-V100(70,80,90,125)U
Features
Name of parameters
70 80 90 100 125
Nominal pressure, MPa 0,8
Operating pressure range, MPa 0,4-1,0
Flow rate of water (foam agent solution), l/s 70 80 90 100 125
Stream range (outermost) at nominal pressure, m, not less than::
- straight water stream 84 89 95 100 105
- dispersed (at a stream discharge angle of 30°) 51 53 58 61 65
- straight foam 70 74 81 85 86
Angle range of a dispersed water stream, degrees 0-90
Working area of monitor rotation, degrees:
- horizontal 360
- vertical up +90 to -45
Weight, kg, not more than -
Certificates All certificates

Products: Water-foam fire monitors, universal, with manual and remote control, stationary, portable, trailer-mounted (including construction versions: low - "n", ball-socket - "b", explosion-proof - "Ex") of LS, LSD types, are manufactured in accordance with the Technical specifications TU 4854-003-16820082-2008 with amendment 7.

The products comply with the requirements of the Technical regulations TR EAEU 043/2017 "On the requirements for fire safety and fire extinguishing equipment".

Certificate validity period: from 06.07.2021 till 06.06.2026.
