LS-V60(50,70,80)U

How to purchase

Description

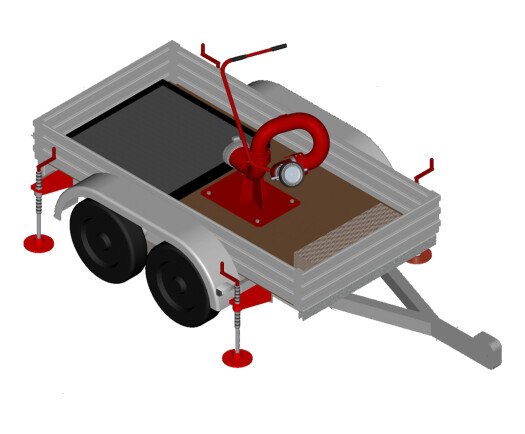

Fire monitor water/foam, universal, trailer-mounted, with manual control, with flow rate of 70,80,90,100,125 l/s.

The fire monitor is applied for formation of extinguishing solution streams with adjustable spray angle from a straight stream to a dispersed at 90°.

The fire monitor is used in fire hazardous zones for fire suppression, cooling of buildings and technological structures, precipitation of poisoned or radioactive gases, fumes and dusts.

Features

Name of parameters	50	60	70	80
Nominal pressure, MPa	0,8
Operating pressure range, MPa	0,4-1,0
Flow rate of water (foam agent solution), l/s	50	60	70	80
Stream range (outermost) at nominal pressure, m, not less than::
- straight water stream	70	75	85	87
- dispersed (at a stream discharge angle of 30°)	43	44	46	50
- straight foam	60	63	65	70
Angle range of a dispersed water stream, degrees	0-90
Working area of monitor rotation, degrees:
- horizontal	360
- vertical	up +90 to -45
Weight, kg, not more than	-

Certificates All certificates

Certificate of Conformity № EAEU RU S-RU.ChS13.V.00178/21 for fire monitors

Products: Water-foam fire monitors, universal, with manual and remote control, stationary, portable, trailer-mounted (including construction versions: low - "n", ball-socket - "b", explosion-proof - "Ex") of LS, LSD types, are manufactured in accordance with the Technical specifications TU 4854-003-16820082-2008 with amendment 7.

The products comply with the requirements of the Technical regulations TR EAEU 043/2017 "On the requirements for fire safety and fire extinguishing equipment".

Certificate validity period: from 06.07.2021 till 06.06.2026.
