Description

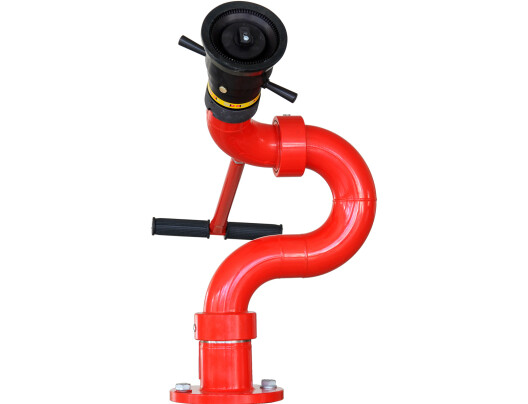

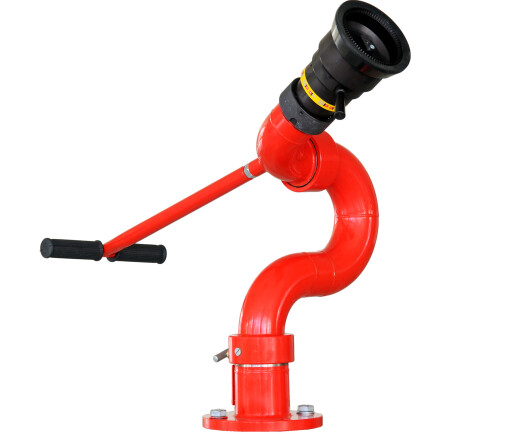

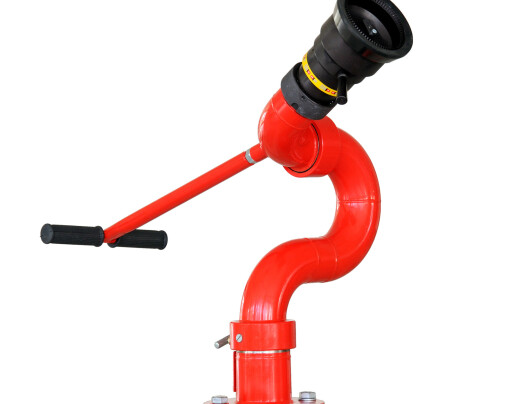

LS-S40(20,30)U fire monitor water/foam, universal, fixed, with manual control, with flow rate of 20, 30, 40 l/s,  of tube construction.

The fire monitor is applied for formation of extinguishing solution streams with adjustable spray angle from a straight stream to a dispersed at 90°.

The fire monitor is used in fire hazardous zones for fire suppression, cooling of buildings and technological structures, precipitation of poisoned or radioactive gases, fumes and dusts.

Fire monitors are produced in a climatic category in accordance with GOST 15150: UKhL 1.1 UKhL 1, U 1, OM 1. Fire monitors are produced in accordance with the requirements of Technical Specifications ТU 4854-003-16820082-2008 and TR EAEU 043/2017.

Upon customer request, the fire monitors are equipped with accessories: oscillators, shielding screens, eductor, automatic, deflector nozzles etc.

More
LS-S40(20,30)U
Features
Name of parameters
20 30 40
Nominal pressure, MPa 0,8
Operating pressure range, MPa 0,4-1,0
Flow rate of water (foam agent solution), l/s 25 30 40
Stream range (outermost) at nominal pressure, m, not less than::
- straight water stream 55 62 65
- dispersed (at a stream discharge angle of 30°) 34 38 42
- straight foam 47 53 55
Angle range of a dispersed water stream, degrees 0-90
Working area of monitor rotation, degrees:
- horizontal 360
- vertical up +90 to -45
Weight, kg, not more than -
