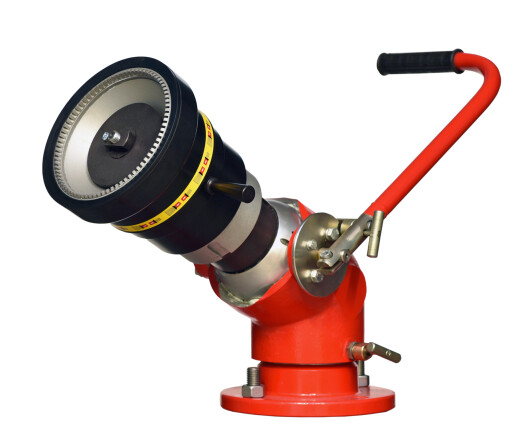

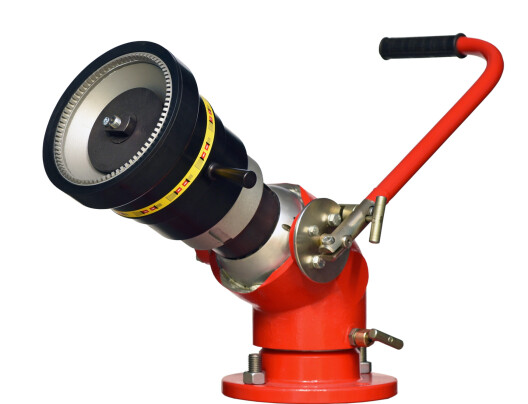

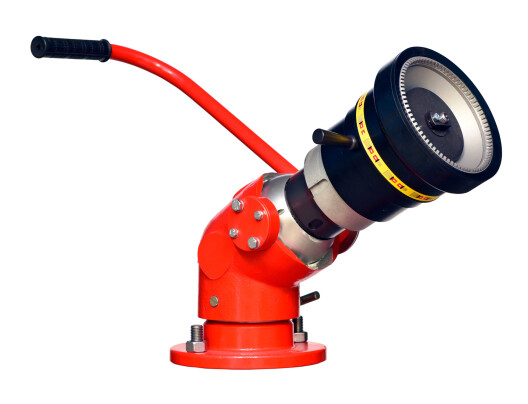

Fire monitor water/foam, universal, with manual control, with flow rate of 60(50) l/s, ball socket construction.

The fire monitor is applied for formation of extinguishing solution streams with adjustable spray angle from a straight stream to a dispersed at 90°.

Features:

  • differ from their analogues by maximum straightened water flow body design without swiveling bores;
  • because of a ball design of the vertical movement joint, these fire monitors have compact dimensions and low weight.

The fire monitor is used in fire hazardous zones for fire suppression, cooling of buildings and technological structures, precipitation of poisoned or radioactive gases, fumes and dusts.

Fire monitors are produced in accordance with the requirements of Technical Specifications ТU 4854-003-16820082-2008 and TR EAEU 043/2017.

More
LS-S60(50)Ub
Features
Name of parameters
50 60
Nominal pressure, MPa 0,8
Operating pressure range, MPa 0,4-1,0
Flow rate of water (foam agent solution), l/s 50 60
Stream range (outermost) at nominal pressure, m, not less than::
- straight water stream 62 65
- dispersed (at a stream discharge angle of 30°) 37 39
- straight foam 53 55
Angle range of a dispersed water stream, degrees 0-90
Working area of monitor rotation, degrees:
- vertical up +75 to -15
- horizontal 360
Weight, kg, not more than 12
Useful information

Fire monitors are used in integrated fire protection systems of large industrial buildings and structures, oil and gas facilities, such as tank farms, oil loading racks and terminals, as well as at mobile firefighting equipment: fire trucks, fire tanks, fire boats and trailers.
