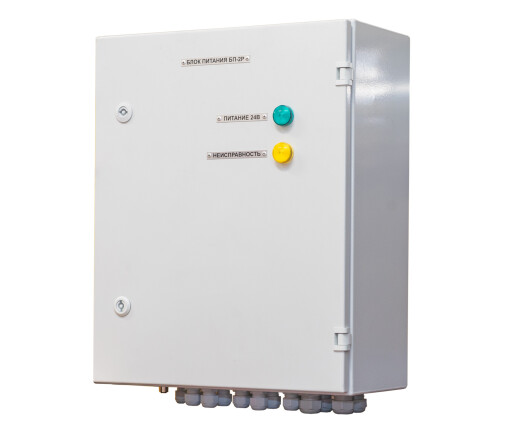

BP-2R power supply unit (BP) is designed for power supply to the following hardware components (HWC) of a robotic fire suppression system (RFSS) (RPU) in a general industrial modification:

  • one or two robotic fire monitors;
  • one or two butterfly valves with BVE-type electric drive;
  • PDU remote control console;
  • other HWC of RFSS with 24 V power supply.

BP converts the voltage of a single-phase industrial AC network into a stabilized 24V DC voltage.

Application areas: operation under a canopy, in premises of non-explosive areas.

Name of parameters
Ingress protection rating of the enclosure in accordance with GOST14254-96 IP54
Сlimatic category in accordance with GOST 15150-69 U3.1
Power supply category from ATS panel
50 Hz DC input voltage range, V 180 – 264
Current consumption at rated load, not more than, A 4
Performance parameters::
Operation temperature range, °/С up -20 to +70
Storage temperature, °С up -25 to +85
Overall dimensions, not more than, mm 400х542х222
Weight, not more than, kg 14
