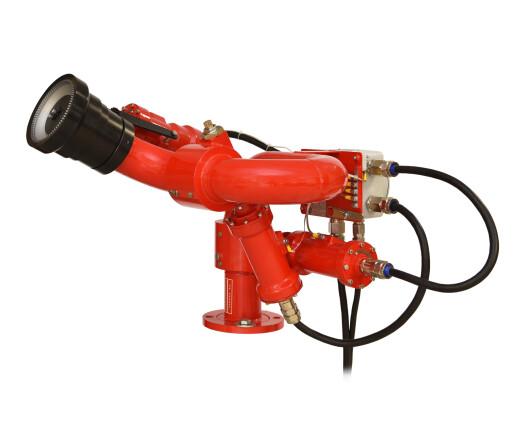

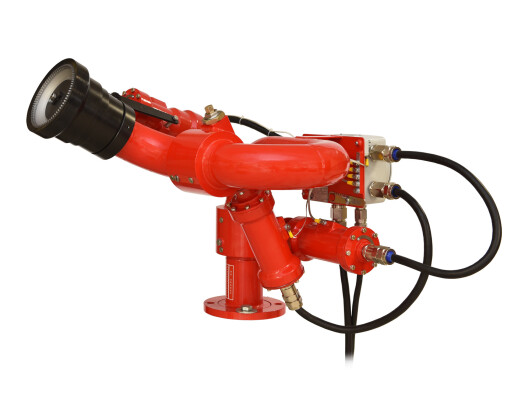

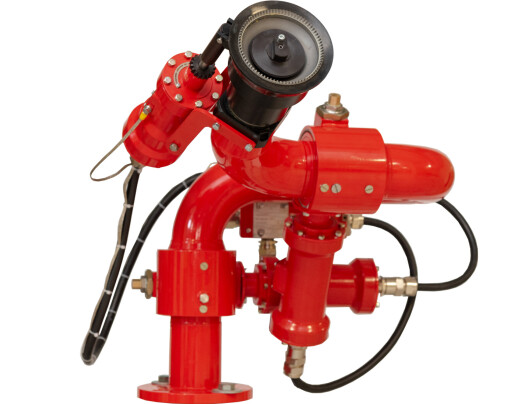

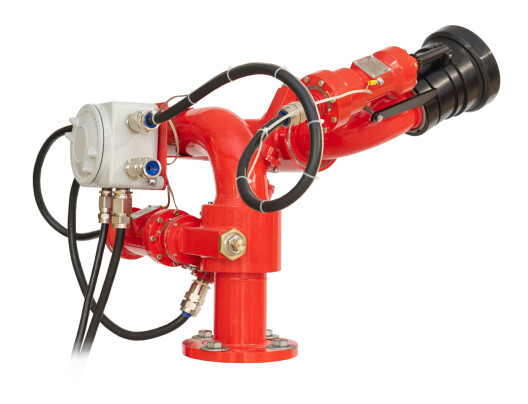

Firefighting robot FR-LSD-S60(50,70,80)U-Ex, water/foam, universal, fixed, with flow rate of 50, 60, 70, 80 l/s, program(remote)-controlled, explosion-proof.

The firefighting robot is applied for formation of extinguishing solution streams with adjustable spray angle from a straight stream to a dispersed at 90°, for automatic targeting to the fire source and programmed fire extinguishing.

The firefighting robot is used in fire hazardous zones for fire suppression, cooling of buildings and technological structures, precipitation of poisoned or radioactive gases, fumes and dusts.

Application area: explosion hazardous zones of Categories 1, 2 in accordance with GOST IEC 60079-10-1-2011, and explosion hazardous zones of Categories 21. 22 in accordance with GOST IEC 60079-10-2-2011, in accordance with explosion-proof marking of GOST 31441.1-2011.

The firefighting robot is included into the robotic fire suppression system and is produced in accordance with the requirements of TU 4854-003-16820082-2008, TU 4854-008-16820082-2015, TU 4854-005-16820082-2005, GOST R 51115-97.

Name of parameters
50 60 70 80
Nominal pressure, MPa 0,8
Operating pressure range, MPa 0,4-1,0
Flow rate of water (foam agent solution), l/s 50 60 70 80
Stream range (outermost) at nominal pressure, m, not less than::
- straight water stream 70 75 85 87
- dispersed (at a stream discharge angle of 30°) 43 44 46 50
- straight foam 60 63 65 70
Angle range of a dispersed water stream, degrees 0-90
Working area of monitor rotation, degrees:
- vertical up +90 to -45
Explosion proof marking -
Electric supply voltage, V -
Installed capacity, W 2х41, 1х12
Сlimatic category in accordance with GOST 15150-69 UkhL 1
Weight, kg, not more than 55
Certificates All certificates

Certificate of conformity for explosion-proof fire monitors LS, LSD, FR-LSD. Explosion-proof marking is in accordance with the appendix. The products are manufactured in accordance with the Technical specifications TU 4854-008-16820082-2015 "Explosion-proof fire monitor monitors" and the manufacturer's technical documentation for operation in explosive environment in accordance with the requirements of the Technical regulations TR CU 012/2011.

Certificate validity period: from 19.11.2020 till 18.11.2025.
